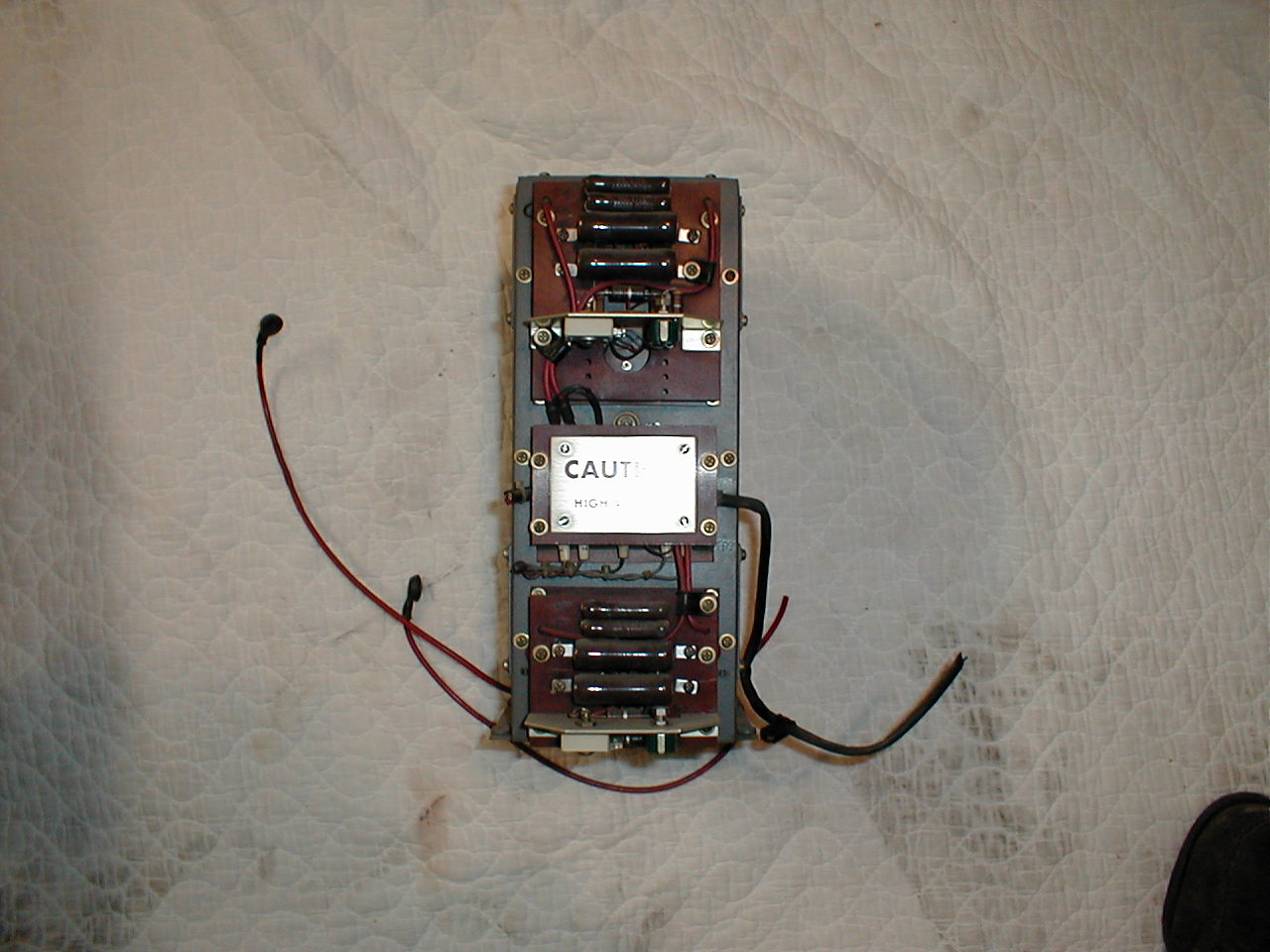

Here is the front view of the high voltage CRT electrostatic deflection drive electronics box. This side has some high wattage resistors mounted to it.
