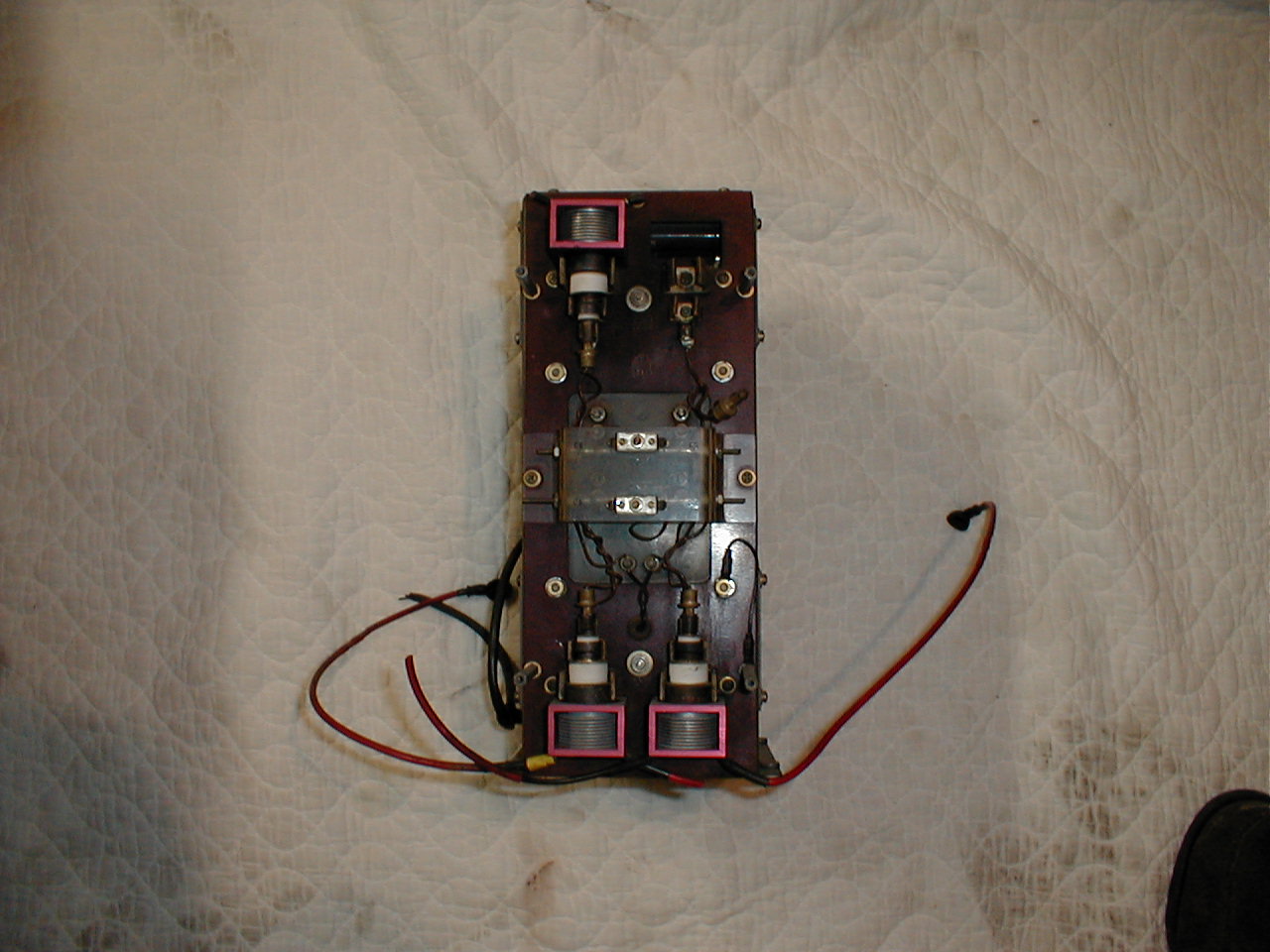

Here is the back view of the high voltage CRT electrostatic deflection drive electronics box. The four high voltage VHF (Eimac Y-464A) deflection amplifier tubes are mounted here (one is missing).
